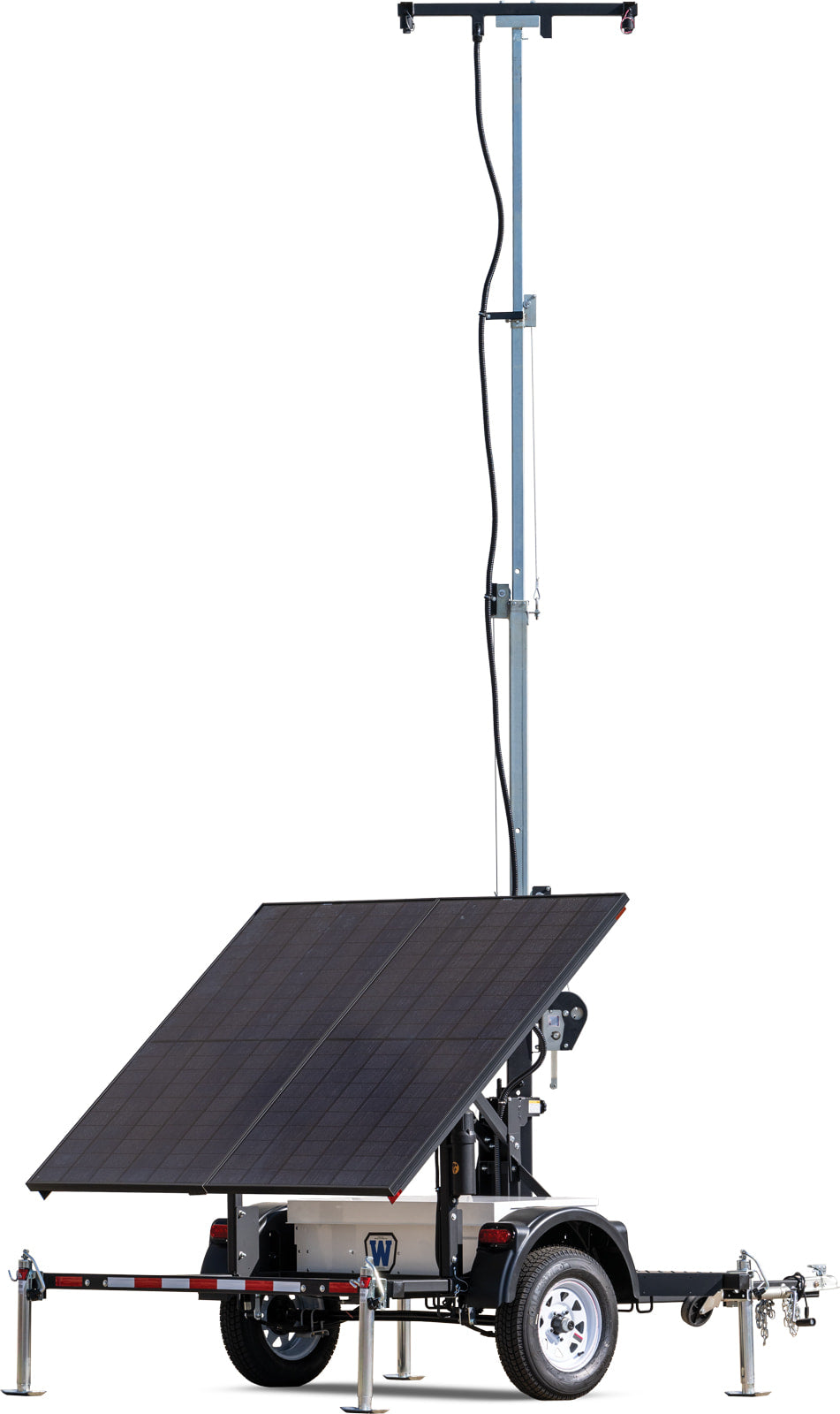

Mini Solar Integrator Trailer

The Wanco Mini Integrator Trailer is a compact version of our full-size integrator trailers, providing the same robust and dependable platform for your gear. This versatile system lets you combine cameras, lights, recording devices, audio systems, communications, RF radios and more — anything needed to keep your job site secure. System power is supplied by lithium-ion batteries, which are charged automatically by the solar‑based charging system.

Base Platform

• All-welded structural steel frame

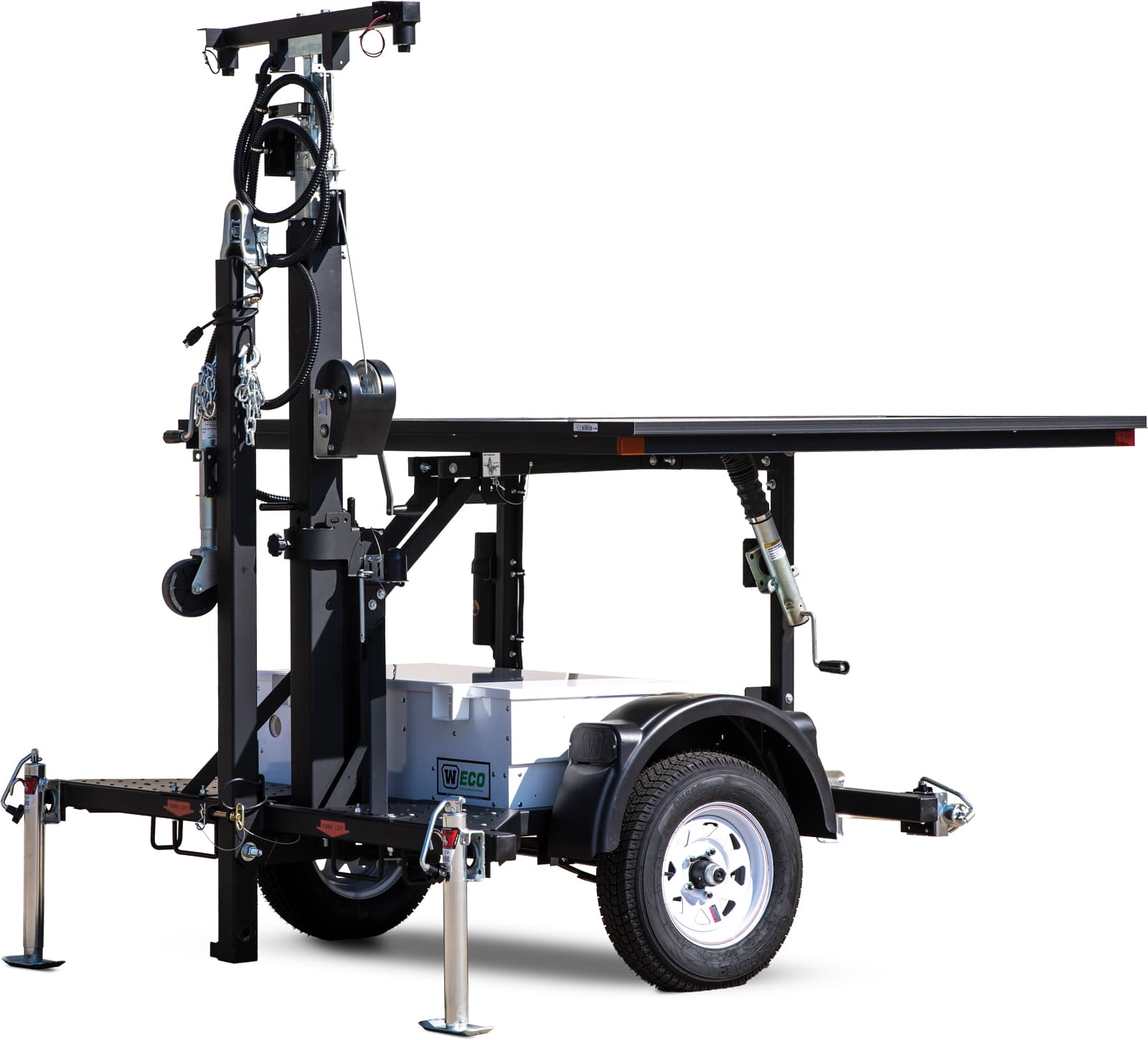

• Folding drawbar for compact storage
• Telescoping 20-foot tower rotates nearly 360 degrees
• Manual hand-operated tower winch
• Two pendant mounts include 1.5-inch NPT fittings
• Three Cat 5e cables and one 16/2 power cable
• Onboard 24Vdc power system

Electronics

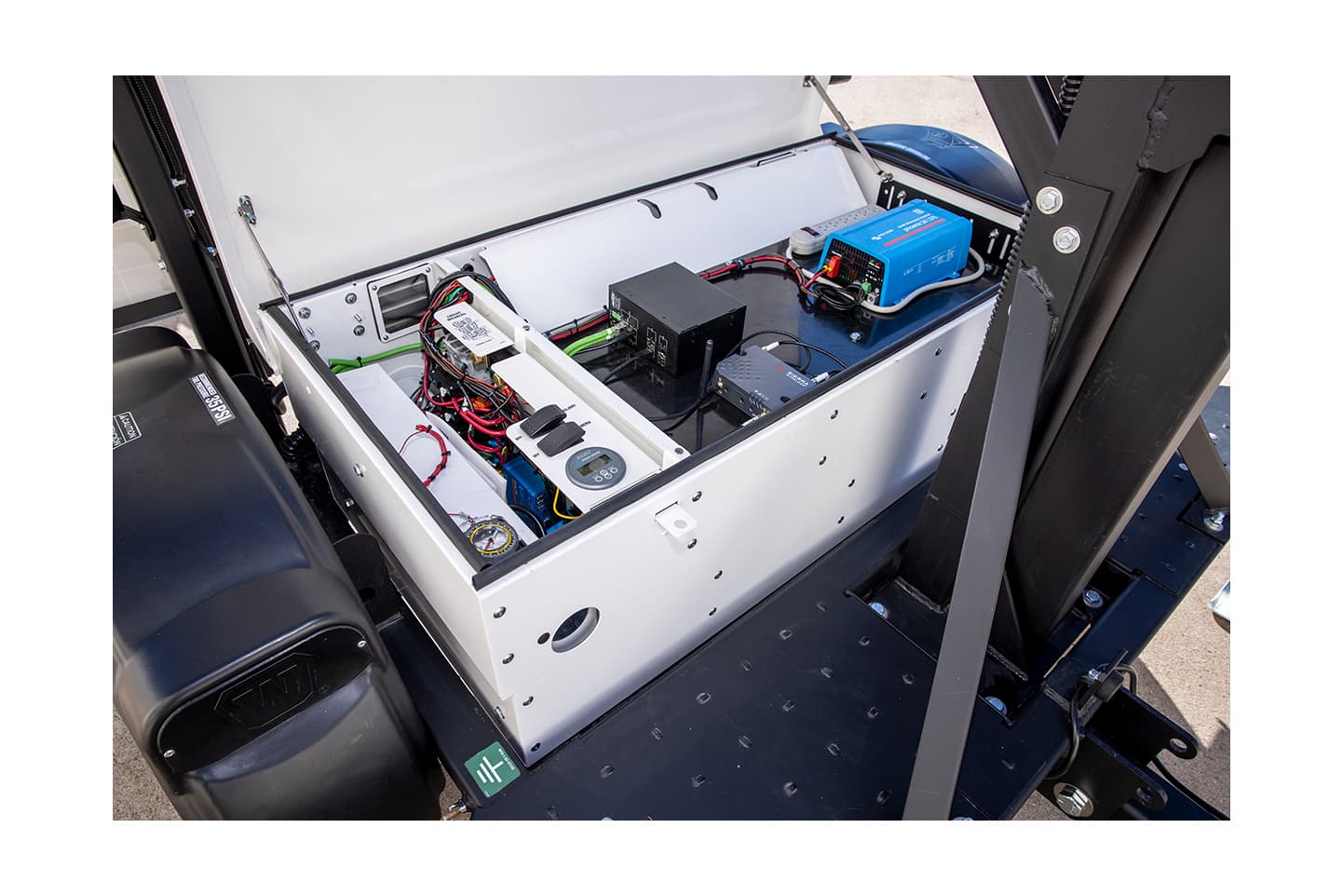

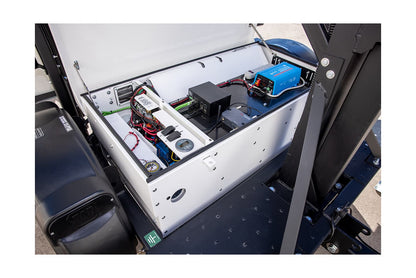

• Electronics and controls are housed in the battery box
• Equipment mounting tray is 15 inches deep by 30 inches wide with 3.5 inches clearance height
• High-security battery box features heavy-gauge steel construction, a hinged top panel with hidden hinges and two hidden-shackle puck locks

Power System

• Lithium-ion batteries wired for 24 volts
• 6.67 kWh usable battery bank capacity in one battery box
• 800 W solar array for battery charging
• Solar array tilts from horizontal to nearly vertical with manual hand-crank
• Smart MPPT solar charge controller
• Bluetooth mobile app for remote power system monitoring
• AC-charger
• Automatic low-voltage shutdown protects batteries and sensitive electronics

Power Management

• True battery state-of-charge
• Convenient time-remaining feature
• Remote power monitoring & management
• Bluetooth app for local remote control
• Extensive performance history

Local battery monitor
A battery monitor inside the battery box gives local access for viewing the most useful power information in real-time.



Remote power monitoring and control
Remote power management provides a snapshot view of power performance, allowing you to monitor, manage and optimize the power system remotely. The system connects briefly and uploads data to the cloud automatically at 15-minute intervals. Set alerts and alarms to catch potential issues early. Use data to make informed decisions and adjust system operation when needed.



Bluetooth power management
The remote power management app for iOS and Android mobile devices provides real‑time access to the functions described above for remote power monitoring and control. The app connects only within Bluetooth range of the surveillance system.
